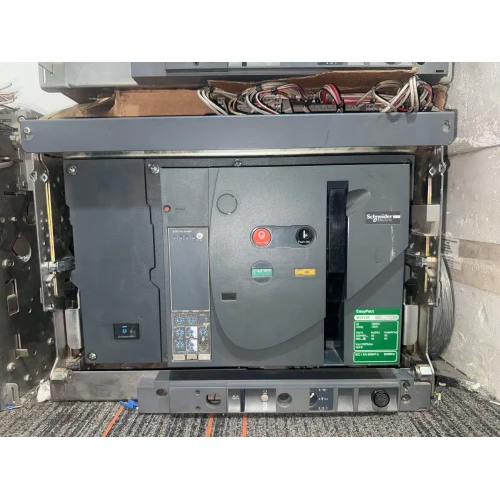

Schneider Electric Nw25H1 Masterpact Acb

Schneider Electric Nw25H1 Masterpact Acb Specification

Phase
Single Phase

Function
Manual

Poles Number
4

Rated Voltage
240 Volt (V)

Rated Current
2500 Ampere (amp)

Rated Frequency
60 Hertz (HZ)

Schneider Electric Nw25H1 Masterpact Acb Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
2-7 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

About Schneider Electric Nw25H1 Masterpact Acb

The NW25H1 is a 4-pole air circuit breaker (ACB) from Schneider Electric's Masterpact series. It's designed for controlling and protecting electrical circuits in industrial and

commercial applications

Key Features

1. Voltage Rating: Up to 690V AC
2. Current Rating: 2500A
3. Pole Configuration: 4-pole
4. Breaking Capacity: Up to 85kA
5. Trip Unit: Electronic trip unit with adjustable settings
6. Communication: Supports Modbus, Profibus, and other communication protocols
7. Compliance: Complies with IEC 60947-2, UL 489, and other international standards

Technical Specifications

1. Protection Degree: IP20 (finger-safe)
2. Dimensions: 330mm x 250mm x 130mm (H x W x D)

Applications

1. Industrial Automation: Suitable for industrial automation applications, including motor control, lighting control, and power distribution.2. Commercial Buildings: Suitable for commercial buildings, including office buildings, hospitals, and shopping centers.3. Infrastructure: Suitable for infrastructure projects, including power generation, transmission, and distribution.
